- Size: 0.45
- Place of Origin: China
- Brand Name: KAITAI
- Model Number: S390
- Weight: 1000.000 kg

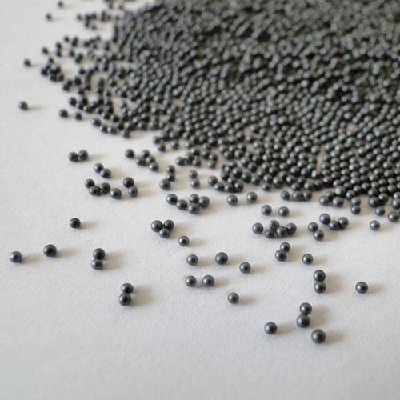

Cast steel shot S110-S780
In accordance with standards of GB/T18838.3-2008 Steel Shot and Steel Grit,SFSA20-66Cast Steel Abrasive, SAE J827 Cast Steel Shot, SAE J1993High Carbon Steel Grit, YB/T5149-1993 Cast Steel Shot, YB/T5150-1993Cast Steel Grit,ISO11124-3High Carbon Cast Steel Shot and Grit.
The Major Technological Index:
Products | Steel Shot | |
Chemical Composition | C | 0.70~1.20% |
Mn | 0.35~1.20% | |
Si | 0.40~1.20% | |
S | ≤0.05% | |
P | ≤0.05% | |
Microhardness | Normal:40~50HRC (377~509HV) | |
Hardness Deviation | Max Deviation ±3.0HRC | |
Microstructure | Tempered Martensite or Sorbite | |
Density | 7.2g/cm3 |
Blast cleaning of cast steel shot:Used for blast cleaning of casting, die-casting,forging,sand removal of casting, steel plate, H type steel, steel structure.
Rust removal of cast steel shot:Rust removal of casting, forging, steel plate, H type steel, steel structure, descaling of forging.
Shot peening of cast steel shot:Shot peening of gear, heat treatment.
Shot blasting of cast steel shot:Shot blasting of profile steel,ship board,steel board,steel material.
Shot blasting of cast steel shot:Shot blasting of steel board, profile steel, steel structure.
Pre-treatment of cast steel shot:Pre-treatment of surface, steel board, profile steel, steel structure, before-painting.
Steel shot mainly used for the following equipment including rotary barrel shot blasting machine, chain type shot blasting machine,pedrail type shot blasting machine,pass_through shot blasting machine,table type shot blasting machine, Pendent-chain & Pile-type Shot Blasting Machine, trolley type shot blasting machine,abrator, abrator equipment,shot peening machine,shot peening equipment,sandblasting machine,sandblasting equipments,steel material pretreatment production line,steel plate pretreatment production line, steel structure pretreatment production line.
- Size: 0.45
- Place of Origin: China
- Brand Name: KAITAI
- Model Number: S390
- Weight: 1000.000 kg
mesh | mm | 铸钢丸规格 mm Specification of Steel Shot mm | ||||||||||
SS-2.5 | SS-2.0 | SS-1.7 | SS-1.4 | SS-1.2 | SS-1.0 | SS-0.8 | SS-0.6 | SS-0.5 | SS-0.3 | SS-0.2 | ||
7 | 2.80 | all pass | ||||||||||
8 | 2.36 | all pass | ||||||||||
10 | 2.00 | 85%min | all pass | all pass | ||||||||
12 | 1.70 | 97%min | 85%min | 5%max | all pass | |||||||
14 | 1.40 | 97%min | 85%min | 5%max | all pass | |||||||
16 | 1.18 | 97%min | 85%min | 5%max | all pass | |||||||
18 | 1.00 | 96%min | 85%min | 5%max | all pass | |||||||
20 | 0.850 | 96%min | 85%min | 10%max | all pass | |||||||
25 | 0.710 | 96%min | 85%min | 10%max | ||||||||
30 | 0.600 | 96%min | 85%min | all pass | ||||||||
35 | 0.500 | 97%min | 85%min | 10%max | ||||||||
40 | 0.425 | 97%min | all pass | |||||||||
45 | 0.355 | 80%min | 10%max | |||||||||
50 | 0.300 | 90%min | ||||||||||
80 | 0.180 | 80%min | ||||||||||
120 | 0.125 | 90%min | ||||||||||
200 | 0.075 | |||||||||||
325 | 0.045 | |||||||||||
SAE | S-780 | S-660 | S-550 | S-460 | S-390 | S-330 | S-280 | S-230 | S-170 | S-110 | S-70 |
