- Size: 18
- Place of Origin: China
- Brand Name: KAITAI

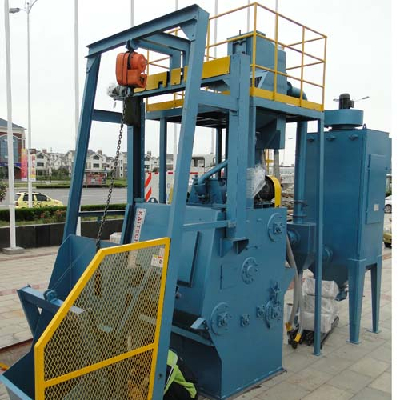

- Model Number: QR3210
- Weight: 2600.000 kg
1. Products Features:
1) It is suitable for different production scale ,it could be stand-alone use and many units can also be used together
2) It could get good clean effect for complicated and small workpieces (small casting ,forging ,spare parts and aluminum parts and so on)
2. Production Application:
It is suitable for surface cleaning ,removing rust and strengthen of various medium ,small casting ,forging and heat treatment
3. Main Technical parameters
| Parameters | Unit | Q326 | Q3210 | QR3210 |
| Productivity | t/h | 0.6-1.2 | 1.5-2.5 | 1.5-2.5 |
| Loading weight | kg | 200 | 600 | 600 |
| The maximum weight of one piece | kg | 10 | 30 | 30 |
| Diameter of roller | mm | 650 | 1000 | 1000 |
| Avaliable capacity | m3 | 0.15 | 0.3 | 0.3 |
| Blasting capacity | kg/min | 100 | 250 | 250 |
| Dedusting air volume | m3/h | 2200 | 5000 | 5000 |
4.Working principle
Open the dust collector,elevator in turn to prepare. Put workpiece in shot blast chamber and load on the rubber belt track. Then close the chamber door; open impeller head, shot gate; impeller head begin throwing steel shot and clearing oxide skin. Meanwhile, rubber belt keep on moving to make workpiece tumbling, in order to clean up uniformly.
Splashed steel shots fall into mesh in bottom though holes in belt, and then screw conveyor conveys steel shot to bottom of elevator. Steel shot are elevated to separator and cleansed, then steel shot fall into impeller again. Shot blasting time( according to workpiece) is controlled by time relay.After finishing shot blasting work, close impeller head and open the chamber gate, reversing belt rotation. Workpiece are unloaded
- Size: 18
- Place of Origin: China
- Brand Name: KAITAI
- Model Number: QR3210
- Weight: 2600.000 kg
Item | Name | Quantity | Technical parameters | Remarks |
1 | Cleaning capacity | 1 | ≤0.3m3 and ≤600Kg | Quantity/times |
2 | Required workpiece | Unit weight of workpiece：≤30Kg L≤500mm t≥10mm 10mm≤∮≤300mm | temperature：≤80℃ | |
3 | Cleaning room | 1 | 1822B×1825L×2300Hmm（max） | |
4 | Blasting wheel | 1 | Blasting volume： 150Kg/min Projection speed： 73m/s | Transmission method：belt transmission motor power:11kw |
5 | Elevator | 1 | Model ： TS-15 Elevating quantity： 15t/h | Power ：2.2kw |
6 | Separator | 1 | wind speed： 4-5m/min | Full curtain wind choice
|
7 | Shot gate | 1 | DK28 | Cylinder control |
8 | Screw conveyor | 1 | Delivery quantity：15t/h | Share the reducer with elevator |
9 | Belt loading system | 1 | End plate diameter：∮1000mm Belt aperture ：∮8mm | Reducer power：1.5kw Belt format：with character rubber belt |
10 | Dust collector | 1 | Model: FBD-24 Ventilation ：3500m3/h | Blower power：2.2KW Vibration motor power：0.55KW |
11 | Bucket loading system | 1 | Rise-fall speed: 6m/min | Power: 3KW |
12 | Door elevate system | 1 | Power;0.55KW | |
13 | Total power | ～21KW | voltage： | |
14 | Metal abrasive for first time | ～600Kg | Buyer need to buy extra | |
15 | Compressed air | Air pressure：0.4～0.6MPa | consumption：0.1 m3/min（buyer is responsible for this） | |
16 | Dust emission | According to GB16297-1996 Integrated emission standard of air pollutants, the figure should below 120mg/m3 | ||
17 | The noise of equipment | According to JB5360-91《 tumble belt shot blasting machine technical condition》,the noise should below 93dB(A) | ||
