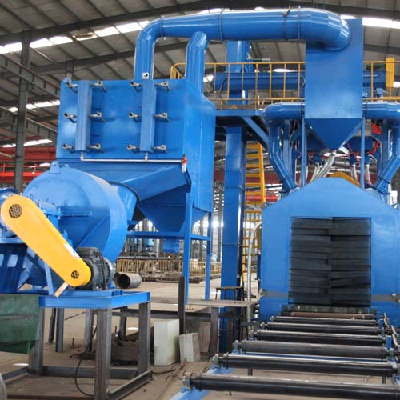

QH69 seires steel structure shot blast machine
1. Production Feature
1) It is used for cleaning metal surface ,it also could removing oxide skin and rust of different kind of steel profiles
2) The equipment is widely used ,high degree automatic ,the self feeding from workpiece ,it meet the requirements of production line.
2. Production Application
It applies to shipping ,car ,motorcycle ,bridge ,machine industries etc.It mainly used for eliminating the stress and surface removing rust of large steel structure ,H beam and so on
Unit | QH698 | QH6912 | QH6915 | QH6918 | |
The effective cleaning width | mm | 800 | 1200 | 1500 | 1800 |
The room feed-in size | mm | 1000*1500 | 1400*1700 | 1700*1700 | 2000*1800 |
The length of cleaning workpieces | mm | 1200-12000 | 1200-13000 | 1500-13000 | 2000-13000 |
The size of cleaning workpieces | mm | 800*1200 | 1200*1500 | 1500*1500 | 1800*1600 |
The speed of wheel conveyor | m/min | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
The quantity of shot blasting | Kg/min | 8*125 | 8*180 | 8*180 | 8*250 |
The first enclosed quantity | kg | 4000 | 5000 | 5000 | 6000 |
Ventilation volume | m3/h | 20000 | 20000 | 25000 | 25000 |
Total Power | Kw | 90 | 130 | 180 | 180 |
4. Working principle
When this machine work,firstly open and run dust collector system ,separator ,elevator ,screw conveyor ,roller system,then open blasting wheel ,this machine prepare to work.Firstly load workpieces in the inlet roller,workpieces run forwardly by roller and then enter into blasting chamber along the roller .Before the entrance of blasting chamber is equipped with detection device ,when the head of workpiece through ,proceed to test, through PLC calculation and after complete delay, the shot supplying valve opens automatically ,then start to clean workpieces.The workpieces go forwards and shot blasting, in order to clear surface oxide, welding slag,rust and dirt and so on,until leave the cleaning room.When the tail of workpieces pass through and tested, through PLC calculation and after complete delay, the shot supplying valve turn off automatically. Workpieces enter into outlet roller,workpieces finish cleaning .After workpieces left outlet roller completely ,worker will unload workpieces in the outlet roller.Repeat this process until the work is finished and stop the machine in turn.
