- Place of Origin: China
- Brand Name: KAITAI
- Model Number: QGW500 QGW 1200 QGW2200

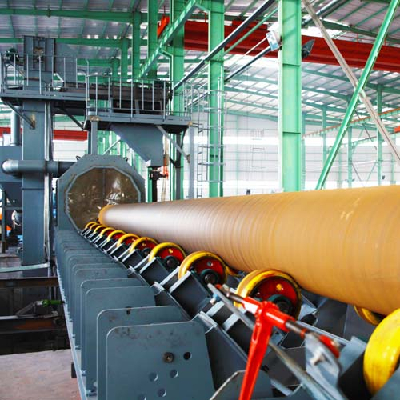

QGW series steel pipe outer wall shot blasting machine
QG series steel pipe outer wall cleaning shot blasting machine with high efficiency achieves shot blasting machine for large diameter (diameters: 16-2800mm) steel pipe out wall cleaning with a powerful cleaning function to clear the fixture on the steel pipe surface ,the steel pipe surface will show metallic character ,achieve an effective clean-up purpose.
Regarding steel pipe with diameter of 16-600mm ,we adopts C type conveyor which have an angle with steel pipe center line ,steel pipe can rotation while going forward.
Regarding steel pipe with diameter of 159-2800mm ,we adopts roller transmission ,angle between roller is adjustable ,running speed and rotation speed can be adjustable with large diameter ,blasting wheel adopts bottom blasting distribution,cleaning efficiency is high ,the result is good .
Shot material circulation purification system takes overflow induction controllable full multi-stage curtain winnowing splitter and special polyester core elevator conveyor ,achieves shot material sorting and recycling.
Production Application:
This equipment can be used for water ,gas ,mining ,oil and pipe coating pre-treatment ,the seabed or desert gas such as duct blaster .It can improve the appearance quality of the product components and the state of the surface craft
Model | Cleaning size(mm) | Cleaning speed (m/min) | Purpose |
QGW100 | 50-300 | 2-10 | Outer wall shot blasting machine |
QGW720 | 159-720 | 2-6 | |
QGW1200 | 219-1016 | 1-6 | |
QGW1500 | 325-1600 | 1-6 | |
QGW2800 | 1016-2800 | 1-2 |
- Place of Origin: China
- Brand Name: KAITAI
- Model Number: QGW500 QGW 1200 QGW2200
Model | Cleaning size(mm) | Cleaning speed (m/min) | Purpose |
QGW100 | 50-300 | 2-10 | Outer wall shot blasting machine |
QGW720 | 159-720 | 2-6 | |
QGW1200 | 219-1016 | 1-6 | |
QGW1500 | 325-1600 | 1-6 | |
QGW2800 | 1016-2800 | 1-2 |
