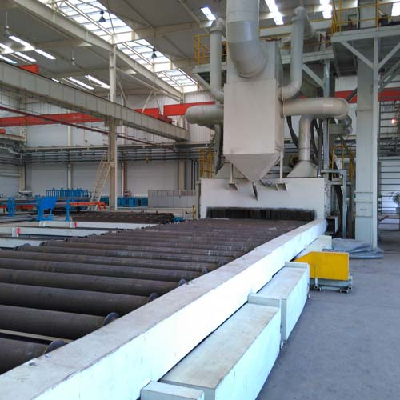

Q6912 steel plate pass through sand blasting machine
1. Products Feature
1) It adopt the fourth generation high-efficiency cantilever centrifugal blasting wheel
2) Blasting zone adopts computer aided design ,and the shots are well-distributed
3) It adopts photoelectric detection .It has the following functions :measuring width ,measuring height ,measuring displacement automatic control
2. Production Application
It applies to shipping car ,motorcycle ,bridge ,machine etc which is in the line of steel board ,section ,and structure casting to wipe of surface rusting and painting arts
3. Main technical Parameters
Parameters | Unit | Q698 | Q6912 | Q6915 | Q6920 |
The effective cleaning width | mm | 800 | 1200 | 1500 | 2000 |
The room feed-in size | mm | 1000*400 | 1400*400 | 1700*400 | 2200*400 |
The length of of cleaning workpiece | mm | 1200-12000 | 1200-12000 | 1200-12000 | 1200-12000 |
The feed of wheel conveyor (Stepless speed variation ) | m/min | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
The thickness of cleaning steel sheet | mm | 3-60 | 3-60 | 3-60 | 3-60 |
Steel profile specification | mm | 800*300 | 1000*300 | 1500*300 | 2000*300 |
The quantity of shot blasting | Kg/min | 4*180 | 4*250 | 4*250 | 6*250 |
The first enclosed quantity | kg | 4000 | 4000 | 4000 | 4500 |
4. Working principle
The blasting wheels will be started after dust collector, separator, bucket elevator, spiral conveyor and roller conveyor system started in order. Then the equipment is ready for work. Workpieces are loaded onto the loading roller conveyor and transported towards the blasting chamber. At the entrance of the blasting chamber, there’s a monitoring device. When the head of the workpiece reach the entrance, the PLC gets the feedback from the monitoring device immediately and starts to count the time according the roller speed. The abrasive supplying valve open automatically when the workpiece enter the blasting area and the workpiece will be blasted when transporting along the roller conveyor. The oxide skin, rust and dirt will all be cleaned after the workpiece leaving the blasting chamber. Also at the exit of the blasting chamber, there is also a monitoring device. When the end of the workpiece reaches the monitoring device, the PLC center will also get the signal immediately and starts counting. The abrasive supply valves will close automatically. The workpiece will be well cleaned in one time. The workpiece will be unloaded at the unloading roller conveyor( we can also provide automatic loading and unloading systems according to your requirement). Repeat the whole process until the work finished. Then stop the equipment inverted order.
