- Size: 18
- Place of Origin: China
- Brand Name: KAITAI
- Model Number: Q3210
- Weight: 2600.000 kg
1. Products Features:
1) It is suitable for different production scale ,it could be stand-alone use and many units can also be used together
2) It could get good clean effect for complicated and small workpieces (small casting ,forging ,spare parts and aluminum parts and so on)
2. Production Application:
It is suitable for surface cleaning ,removing rust and strengthen of various medium ,small casting ,forging and heat treatment
3. Main Technical parameters
| Parameters | Unit | Q326 | Q3210 | QR3210 |
| Productivity | t/h | 0.6-1.2 | 1.5-2.5 | 1.5-2.5 |
| Loading weight | kg | 200 | 600 | 600 |
| The maximum weight of one piece | kg | 10 | 30 | 30 |
| Diameter of roller | mm | 650 | 1000 | 1000 |
| Avaliable capacity | m3 | 0.15 | 0.3 | 0.3 |
| Blasting capacity | kg/min | 100 | 250 | 250 |
| Dedusting air volume | m3/h | 2200 | 5000 | 5000 |
4.Working principle

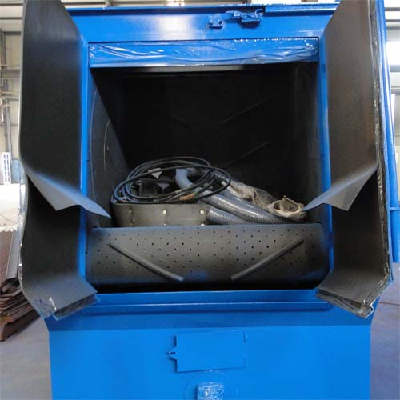

Open the dust collector,elevator in turn to prepare. Put workpiece in shot blast chamber and load on the rubber belt track. Then close the chamber door; open impeller head, shot gate; impeller head begin throwing steel shot and clearing oxide skin. Meanwhile, rubber belt keep on moving to make workpiece tumbling, in order to clean up uniformly.
Splashed steel shots fall into mesh in bottom though holes in belt, and then screw conveyor conveys steel shot to bottom of elevator. Steel shot are elevated to separator and cleansed, then steel shot fall into impeller again. Shot blasting time( according to workpiece) is controlled by time relay.After finishing shot blasting work, close impeller head and open the chamber gate, reversing belt rotation. Workpiece are unloaded
